SPEEDIO

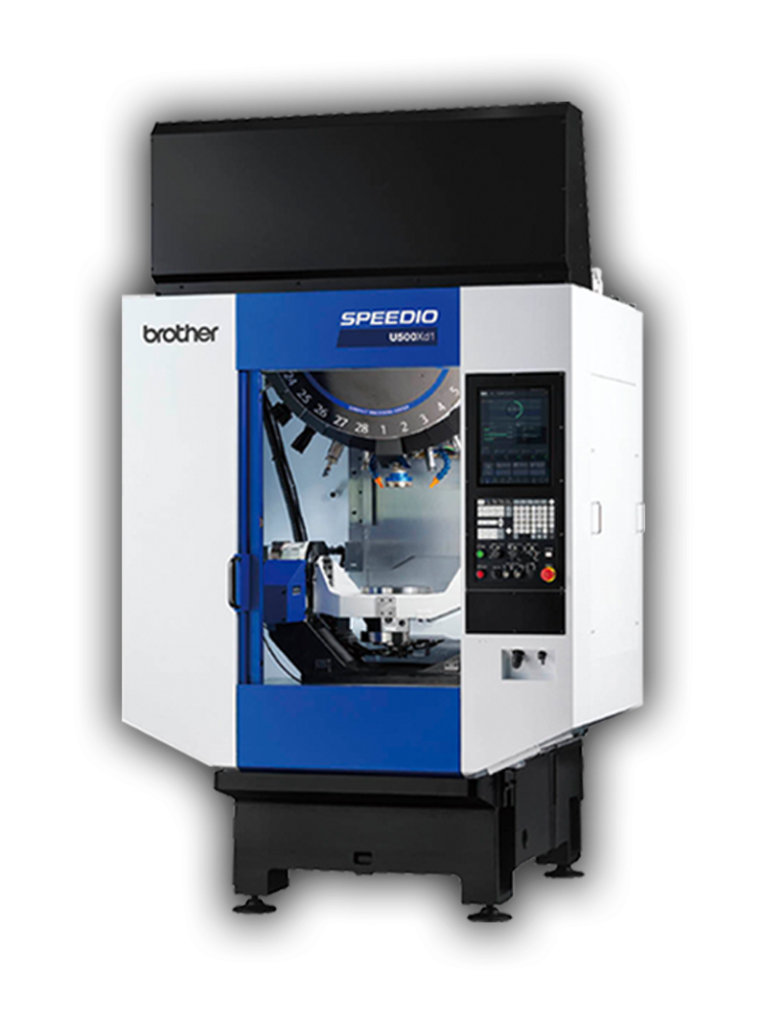

U500Xd1
Equipped with a newly developed tilting rotary table with a maximum jig area of 500 mm in diameter. Combination with a 28-tool magazine enables multi-face machining that breaks the conventional concept of #30 machines.
Rate this product
SPEEDIO
U500Xd1
Equipped with a newly developed tilting rotary table with a maximum jig area of 500 mm in diameter. Combination with a 28-tool magazine enables multi-face machining that breaks the conventional concept of #30 machines.
Rate this product
About Product
| Specification | Detail |
| Spindle Speed | 16,000 RPM |
| Tapping Speed | 6,000 RPM |
| Main Spindle Motor (10 MIN/CONT) | 7.4/5.1 HP |
| Number of Tools | 28 |
| Travel (X, Y, Z) | 19.7", 15.7", 11.8" |
| Rapid Traverse (X, Y, Z) | 1,969 , 1,969, 2,205 |
| Tool to Tool | 0.7 sec |
| Specification | Detail |
| Spindle Speed | 16,000 RPM |
| Tapping Speed | 6,000 RPM |
| Main Spindle Motor (10 MIN/CONT) | 7.4/5.1 HP |
| Number of Tools | 28 |
| Travel (X, Y, Z) | 19.7", 15.7", 11.8" |
| Rapid Traverse (X, Y, Z) | 1,969 , 1,969, 2,205 |
| Tool to Tool | 0.7 sec |
