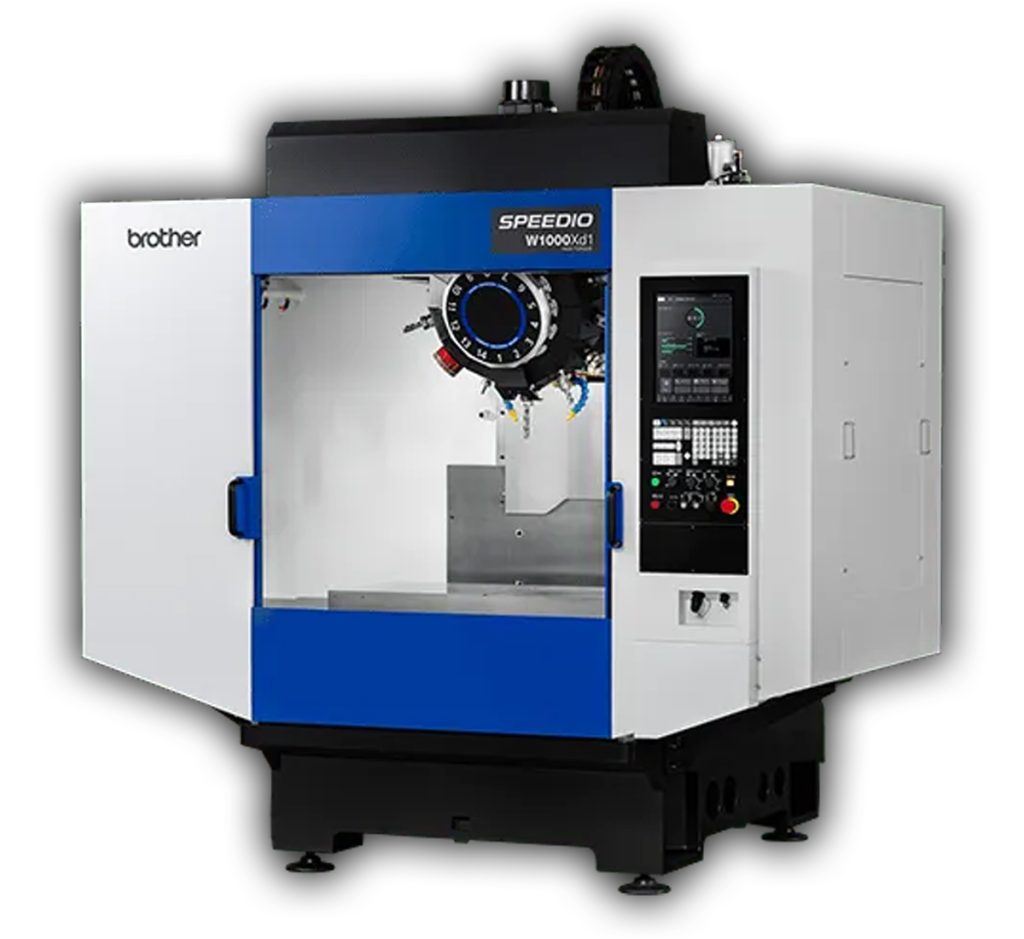

SPEEDIO
W10000Xd1
“Machining larger workpieces using #30 machine” The release of the W1000Xd1 machining center sees an override in the conventional machining areas of #30 machines. Equipped with new NC controller
Specifications
| Specification | Details |
| X Axis Travel | 39.4″ |
| Y Axis Travel | 19.7″ |
| Z Axis Travel | 11.8″ |
| * Spindle RPM | 10,000/16,000 |
| Tapping RPM | 6,000 |
| Rapid Traverse | 1,969 IPM (2205 Z-Axis) |
| * Cutting Feed rate | X, Y, Z: 1~30,000 (0.04 ~ 1,181) |
| Table Size | 43.3″ x 19.7″ |
| Maximum Loading Capacity | 661 lbs |
| ATC Capacity | 14/21 |
| Tool To Tool Time | 0.6 sec |
| Chip to Chip Time | 1.2 sec |
| Tool Shank Type | MAS-BT30 |
| Maximum Tool Length | 9.8″ |
| Maximum Tool Diameter | 4.3″ |
| Maximum Tool Weight | 6.6 Lbs |
