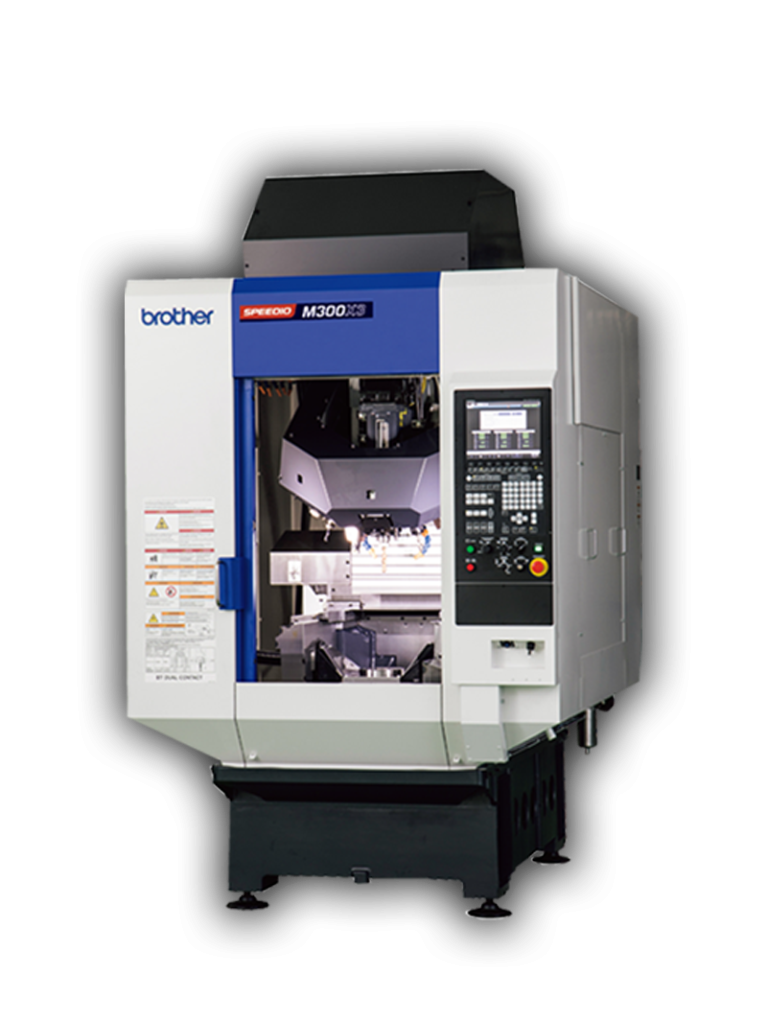

SPEEDIO
M300X3
This compact combined processing machine fuses high productivity technology and process streamlining that allows lathing and machining to be performed with a single machine. In addition to expanding the range of workpieces that can be machined, this newly model is labor-saving and capable of handling a variety of machining.
Specifications
| Specification | Detail |
| X Axis Travel | 11.8″ |
| Y Axis Travel | 17.3″ |
| Z Axis Travel | 15.0″ |
| A Axis (deg.) | 120 – -30 |
| C Axis (deg.) | 360 |
| Spindle RPM | 10,000/16,000 |
| Tapping RPM | 6,000 |
| Rapid Traverse | 1,969 IPM |
| Cutting Feedrate | X, Y, Z: 1~30,000 (0.04 ~ 1,181) |
| Work Area Size | Φ6.7 |
| Maximum Loading Capacity | Table Side 165.3 lbs. Tale Side 41.9 lbs. |
| ATC Capacity | 22 / 28 |
| Tool To Tool Time | 0.8 sec |
| Chip to Chip Time | 1.5 sec |
| Tool Shank Type | MAS-BT30 |
| Maximum Tool Length | 9.8″ |
| Maximum Tool Diameter | 3.1″ |
| Maximum Tool Weight | 6.6 Lbs |
