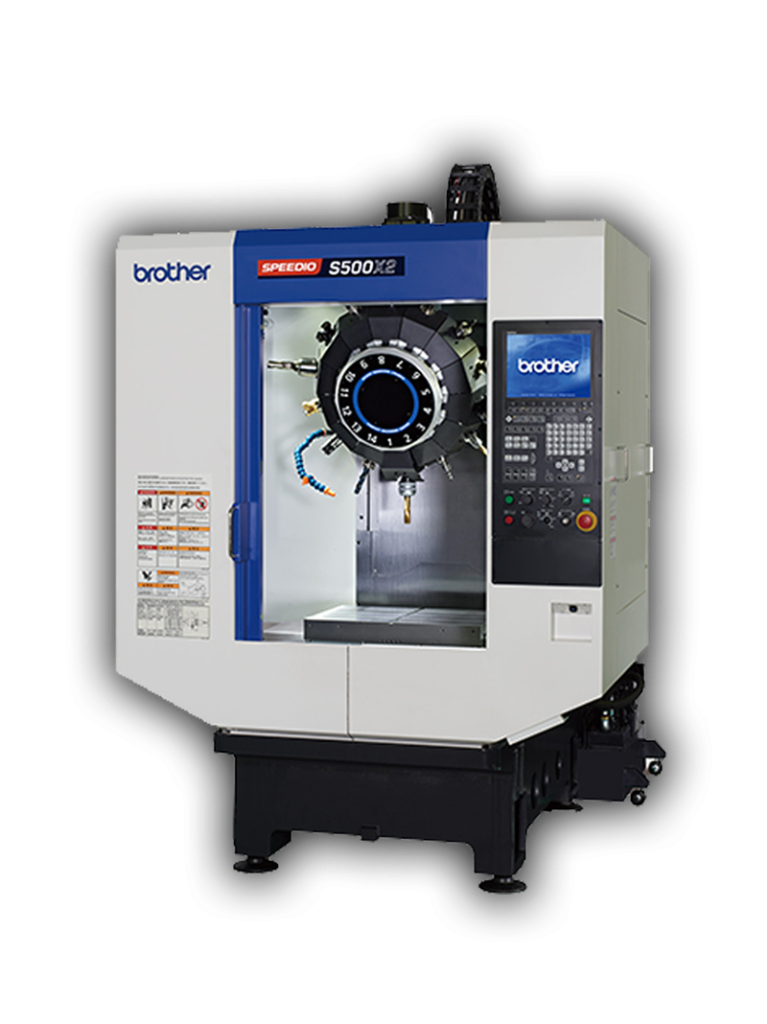

SPEEDIO
S500X2
Achievement of high acceleration and high responsiveness through machine/controller integrated development and complete elimination of wasted operation and wasted time enable the machine to fully demonstrate its abilities, resulting in high productivity.
Rate this product
SPEEDIO
S500X2
Achievement of high acceleration and high responsiveness through machine/controller integrated development and complete elimination of wasted operation and wasted time enable the machine to fully demonstrate its abilities, resulting in high productivity.
Rate this product
About Product
| Specification | Details |
| X Axis Travel | 19.7" |
| Y Axis Travel | 15.7" |
| Z Axis Travel | 11.8" |
| Spindle RPM | 10,000/16,000/27,000 |
| Tapping RPM | 6,000/8,000 |
| Rapid Traverse | 1,969 IPM (2205 Z-Axis) |
| Cutting Feed rate | X, Y, Z: 1~30,000 (0.04 ~ 1,181) when using high accuracy mode B |
| Table Size | 23.6" x 15.7" |
| Maximum Loading Capacity | 300 Lbs |
| ATC Capacity | 14/21/28 |
| Tool To Tool Time | 0.6/0.7 sec |
| Chip to Chip Time | 1.2/1.3 sec |
| Tool Shank Type | MAS-BT30 |
| Maximum Tool Length | 9.8" |
| Maximum Tool Diameter | 4.3" |
| Maximum Tool Weight | 6.6 Lbs |
