Cincom

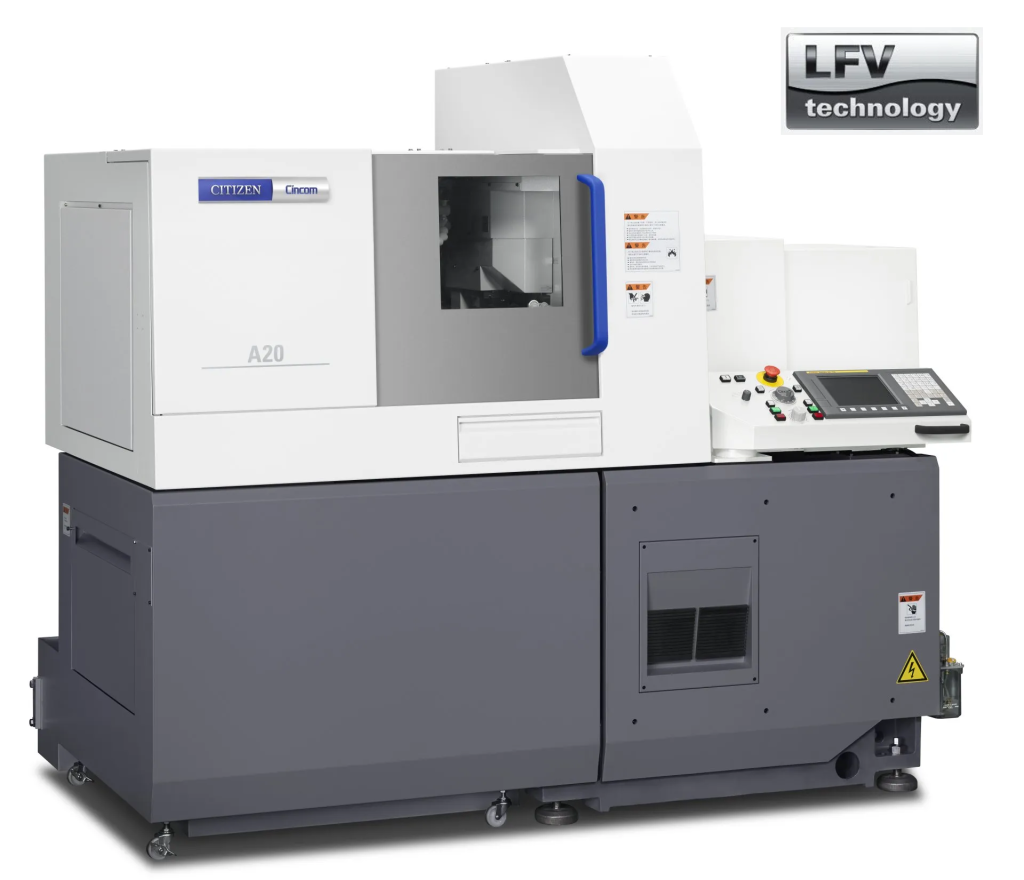

A20-3F7 LFV
The Citizen A20, an evolving 5-Axis CNC sliding head machine, furthers the quest for cost and performance, featuring the ability to switch between guide bush and non-guide bush types.
Rate this product
Cincom
A20-3F7 LFV
The Citizen A20, an evolving 5-Axis CNC sliding head machine, furthers the quest for cost and performance, featuring the ability to switch between guide bush and non-guide bush types.
Rate this product
About Product
| Max. machining diameter (D) | ∅ 20 mm (∅ 25 option) |
| Max. machining length (L) | GB: 200 mm / 1 chucking (188 mm: ∅ 25 spec.) NGB: 2.5 D |
| Spindle through-hole diameter | ∅ 26 mm |
| Main spindle speed | Max.10,000 rpm |
| Spindle speed of the gang rotary tool | Max. 6,000 rpm (Rating 4,500 rpm) |
| Max. chuck diameter of back spindle | ∅ 20 mm (∅ 25 option) |
| Max. protrusion length of back spindle workpiece | 50 mm |
| Max. protrusion length | 100 mm |
| Back spindle speed | Max. 8,000 rpm |
| Number of tools to be mounted | 21 |
| Tool size: Tool (gang tool post) | ▢1/2" |
| Tool size: Sleeve | 1" |
| Chuck and bushing: Main spindle collet chuck | TF25 (TF30: ∅ 25 mm) |
| Chuck and bushing: Back spindle collet chuck | TF25 (TF30: ∅ 25 mm) |
| Chuck and bushing: Rotary tool collet chuck | ER11, ER16 |
| Chuck and bushing: Chuck for drill sleeves | ER11, ER16 |
| Chuck and bushing: Guide bushing | TD25NS (CD25: ∅ 25 mm) |
| Rapid feed rate: All axes (except X1) | 32 m/min |
| Rapid feed rate: X1 axis | 18 m/min |
| Motors: Spindle drive | 2.2 / 3.7 kW |
| Motors: Tool spindle drive | 0.75 kW |
| Motors: Back spindle drive | 1.1 / 1.5 kW |
| Motors: Coolant oil | 0.4 kW |
| Motors: Lubricating oil | 0.003 kW |
| Center height | 1,050 mm |
| Rated power consumption | 7.1 kVA |
| Full-load current | 20.2 A |
| Main breaker capacity | 30 A |
| Air pressure & air flow rate for pneumatic devices | 0.5 MPa • 47 NL |
| Weight | 4,851 lbs |
| Max. machining diameter (D) | ∅ 20 mm (∅ 25 option) |
| Max. machining length (L) | GB: 200 mm / 1 chucking (188 mm: ∅ 25 spec.) NGB: 2.5 D |
| Spindle through-hole diameter | ∅ 26 mm |
| Main spindle speed | Max.10,000 rpm |
| Spindle speed of the gang rotary tool | Max. 6,000 rpm (Rating 4,500 rpm) |
| Max. chuck diameter of back spindle | ∅ 20 mm (∅ 25 option) |
| Max. protrusion length of back spindle workpiece | 50 mm |
| Max. protrusion length | 100 mm |
| Back spindle speed | Max. 8,000 rpm |
| Number of tools to be mounted | 21 |
| Tool size: Tool (gang tool post) | ▢1/2" |
| Tool size: Sleeve | 1" |
| Chuck and bushing: Main spindle collet chuck | TF25 (TF30: ∅ 25 mm) |
| Chuck and bushing: Back spindle collet chuck | TF25 (TF30: ∅ 25 mm) |
| Chuck and bushing: Rotary tool collet chuck | ER11, ER16 |
| Chuck and bushing: Chuck for drill sleeves | ER11, ER16 |
| Chuck and bushing: Guide bushing | TD25NS (CD25: ∅ 25 mm) |
| Rapid feed rate: All axes (except X1) | 32 m/min |
| Rapid feed rate: X1 axis | 18 m/min |
| Motors: Spindle drive | 2.2 / 3.7 kW |
| Motors: Tool spindle drive | 0.75 kW |
| Motors: Back spindle drive | 1.1 / 1.5 kW |
| Motors: Coolant oil | 0.4 kW |
| Motors: Lubricating oil | 0.003 kW |
| Center height | 1,050 mm |
| Rated power consumption | 7.1 kVA |
| Full-load current | 20.2 A |
| Main breaker capacity | 30 A |
| Air pressure & air flow rate for pneumatic devices | 0.5 MPa • 47 NL |
| Weight | 4,851 lbs |
