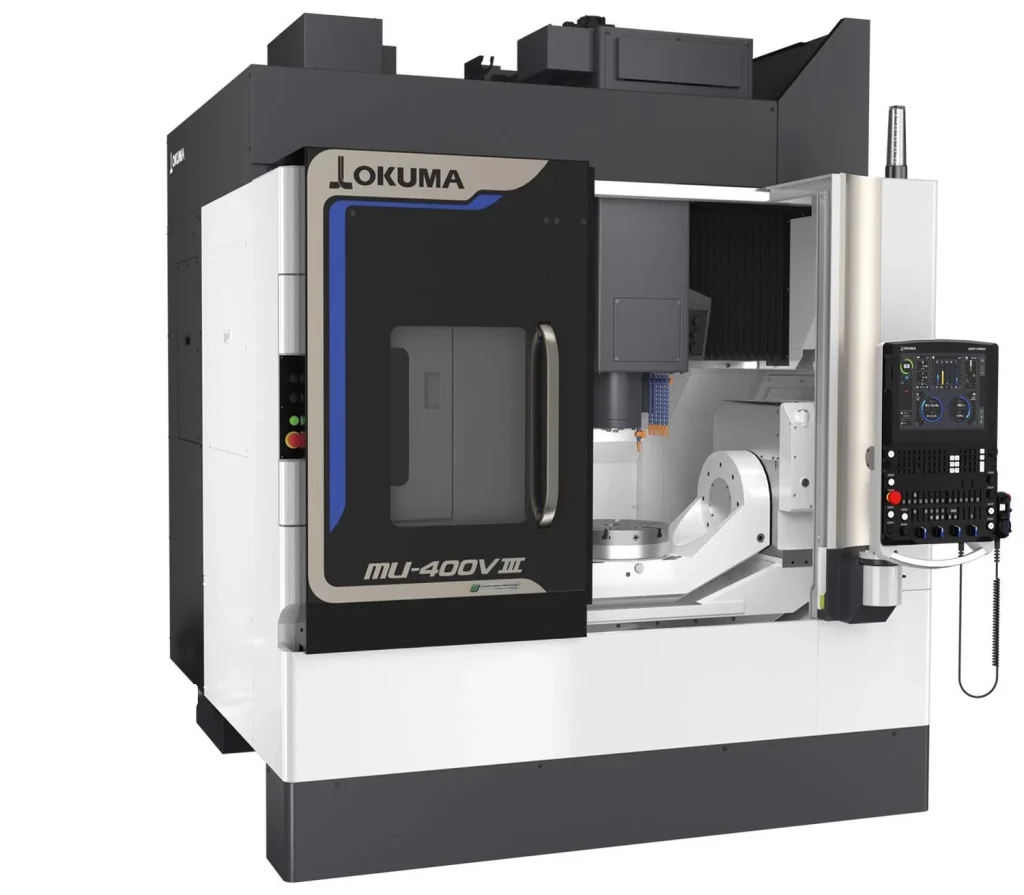

The UNIVERSAL CENTER MU-V series provides the power of process-intensive machining and high-speed, high-accuracy cutting through the combination of turning and 5-axis multitasking machining. The fast yet powerful trunnion table allows simultaneous 5-axis machining and one-chuck multi-sided machining of complex shapes. Ideal for die and mould shops and highly complex aerospace components.
Rate this product
The UNIVERSAL CENTER MU-V series provides the power of process-intensive machining and high-speed, high-accuracy cutting through the combination of turning and 5-axis multitasking machining. The fast yet powerful trunnion table allows simultaneous 5-axis machining and one-chuck multi-sided machining of complex shapes. Ideal for die and mould shops and highly complex aerospace components.
Rate this product
| Specification | Details |
| Table size [mm] | Ø 400 |
| Spindle speed [min-1] | 8,000 [15,000, 20,000, 25,000, 35,000] |
| Axis travel [mm] | X: 762 / Y: 460 / Z: 460 |
| No. of tools | 20 [32, 48, 78, 104, 156, 208, 234, 338] |
| Motor [kW] | 11/7,5 [22/18,5], [30/22], [15/11], [15] |
| 5-Axis function | Yes |
| Specification | Details |
| Table size [mm] | Ø 400 |
| Spindle speed [min-1] | 8,000 [15,000, 20,000, 25,000, 35,000] |
| Axis travel [mm] | X: 762 / Y: 460 / Z: 460 |
| No. of tools | 20 [32, 48, 78, 104, 156, 208, 234, 338] |
| Motor [kW] | 11/7,5 [22/18,5], [30/22], [15/11], [15] |
| 5-Axis function | Yes |
